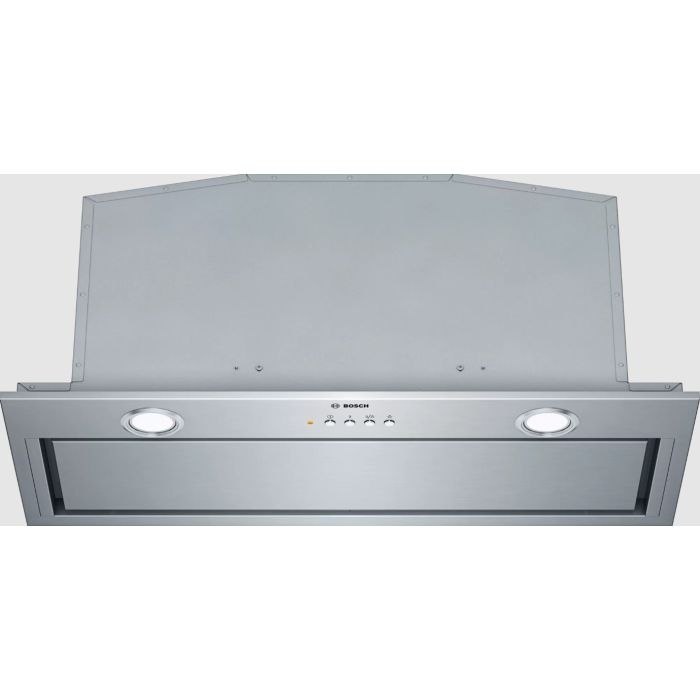

Bosch DHL785CGB S/Steel 70Cm Built-In Canopy Hood (730 M³/H)
- ColourBrushed steel
- Manufacturer Guarantee2 years
- EAN4242002831206
DHL785CGB Series 6 Canopy cooker hood 70 cm
Technical Overview
Width: 70 cm
Air circulation: Convertible
Sound power at max. speed (2010/30/EC): 66 dB
Maximum output air extraction: 630 m³/h
Boost position air extraction: 730 m³/h
Energy efficiency rating: C
Smart Appliance: No
Highlights
The optimum air volume for kitchens of all sizes
No matter whether you have an open-plan kitchen and living-room or a small, closed-off kitchen. We offer the optimum air volume for kitchens of all sizes. Air should be exchanged 6 to 12 times an hour to ensure a consistently pleasant ambience. To do so, the air delivery volume or power of the cooker hood must be appropriate to the room volume.
Metal grease filter
Ducted and recirculation hoods require metal grease filters to filter grease and other solid particles out of the extracted air. To keep these filters operating at maximum efficiency, clean them about once a month either by hand or in the dishwasher.
● LED Illumination: The energy-saving lighting provides bright and clear lighting for the hob area.
● Intensive speed setting: removes strong kitchen odours quickly and effectively.
● An impressive extraction rate of m3/h ensures this hood will have your kitchen odour free in no time.
● Intensive speed setting with reset: automatically resets the hood to normal speed setting
● Dishwasher safe aluminum mesh filters
Specification | ||
---|---|---|
- General | ||
Width | 70 cm | |
Color body | Stainless steel | |
Installation type | Built-in | |
Air circulation | Convertible | |
Total power of the motors | 275 W | |
Type of control setting and signalling devices | LED, Low-lift pushbuttons | |
Maximum output air extraction | 630 m³/h | |
Boost position air extraction | 730 m³/h | |
Sound power at max. speed (2010/30/EC) | 66 dB | |
Sound power boost (2010/30/EC) | 69 dB | |
Maximum output recirculating air | 571 m³/h | |
Boost position output recirculating | 664 m³/h | |
Sound power at max. speed (recirculation) | 72 dB | |
Sound power boost (recirculation) | 75 dB | |
Grease filter material | Washable aluminium | |
Energy efficiency rating | C | |
Total annual energy consumption | 104.2 kWh/annum | |
Width of the product | 700 mm | |
Depth of the product | 300 mm | |
Minimum distance above an electric hob | 500 mm | |
Minimum distance above a gas hob | 650 mm | |
Diameter of air outlet | 120 / 150 mm | |
No-return airflow flap | Yes | |
Length of electrical supply cord | 150.0 cm | |
Net weight | 9.1 kg | |
Appliance height exhaust air max | 418 mm | |
Appliance height exhaust air min | 418 mm | |
Appliance height recirculating max | 418 mm | |
Appliance height recirculating min | 418 mm | |
Minimum width for installation | 676 mm | |
Maximum width for installation | 676 mm | |
Depth for installation | 264 mm | |
PrefectAir Sensor | No | |
Cooktop-based hood control | No | |
Efficient SilentDrive | No | |
Silence | No | |
Boost position | Yes | |
Remote control | No | |
Type of lamps used | LED | |
Number of lights (Stck) | 2 | |
Total power of the lamps | 2 W | |
Total luminance | 244 lux | |
Color temperature | Cold white (4.000 K) | |
Illumination type softlight | No | |
Average illumination of the lighting system on the cooking surface E_middle(2009/125/EC) | 244 lux | |
Color temperature control via smartphone with Home Connect | No | |
AmbientLight | No | |
- Connectivity | ||
Smart Appliance | No |
Manufacturer | Bosch |
---|---|
GTIN | 4242002831206 |
Colour | Brushed Steel |
Model Number | DHL785CGB |
